Increasing Line Uptime by 30% on High-Speed Tyre Building Machines

How an international radial tyre manufacturer deployed Linecraft Ikshana to replace subjective operator logbooks with automated, millisecond PLC fault attribution—eliminating chronic micro-stoppages and boosting overall line uptime by 30%.

Executive Summary

Tyre building is a highly integrated, sequential mechanical process where carcass drums, ply applicators, bead setters, and tread extrusion feeders operate in tight synchronization. A fault or sensor trip on any sub-assembly instantly halts the entire Tyre Building Machine (TBM). When a plant operates fleets of multi-million dollar TBMs, even slight availability deficits cascade into severe finished-goods bottlenecks for the downstream curing press lines.

At this facility, management observed substantial variance between planned and actual output. Although capital equipment was modern, chronic downtime plagued daily shifts. Traditional manual ticketing and SCADA alarm dumps created noise rather than actionable insight. By deploying Linecraft Ikshana, the facility gained automated, objective, 24/7 attribution of every stoppage event—enabling maintenance engineers to systematically eliminate the dominant causes of line downtime.

The Operational Challenge: Subjective Logbooks and Micro-Stop Invisibility

Before Linecraft's intervention, the plant relied on operators to enter stoppage reasons into terminal touchscreens. This manual process generated significant analytical blind spots:

• Generic Alarm Categorization: Over 65% of downtime hours were tagged under vague descriptions such as "Machine Jam," "Sensor Fault," or "Operator Waiting." The maintenance team lacked the granular diagnostics required to fix the underlying mechanical or electrical root causes.
• The Cumulative Impact of Micro-Stoppages: Stoppages lasting less than 2 minutes were almost never recorded by operators, who simply cleared the jam and pressed restart. However, aggregated machine data revealed that 20 to 30 micro-stops per shift were silently eroding 45 to 70 minutes of productive machine time every day.
• Maintenance Firefighting vs. Root Cause Prevention: Without an objective Pareto ranking of faults based on total accumulated lost time, technicians spent hours repairing minor symptoms while the primary downtime drivers repeated unabated.

"When operators manually log downtime, you capture human perception. When you capture native PLC states at the millisecond level, you capture objective truth."

The Technological Solution: Automated Attribution via Ikshana

The plant integrated Linecraft Ikshana with the machine controllers over standard Industrial Ethernet protocols. Without installing secondary sensors, Ikshana began listening to all PLC internal state flags, fault bits, drive error codes, and interlock permissives.

Ikshana transformed raw PLC data into an actionable reliability framework:

• True Zero-Touch Downtime Capture: Every single halt—whether lasting 4 seconds or 45 minutes—was automatically timestamped, categorized, and linked to its initiating fault bit.
• Dynamic Pareto Analysis: The platform continuously ranked faults not just by frequency, but by total lost production time, exposing which issues represented the greatest threat to plant output.
• Inter-Station Dependency Isolation: Ikshana differentiated between internal equipment failures and external starvation caused by tread/ply feed carriage delays.

Data Discovery: Unmasking the Critical 20% Pareto Faults

Once Linecraft aggregated the machine data over a multi-week baseline period, the true downtime landscape emerged with stark clarity:

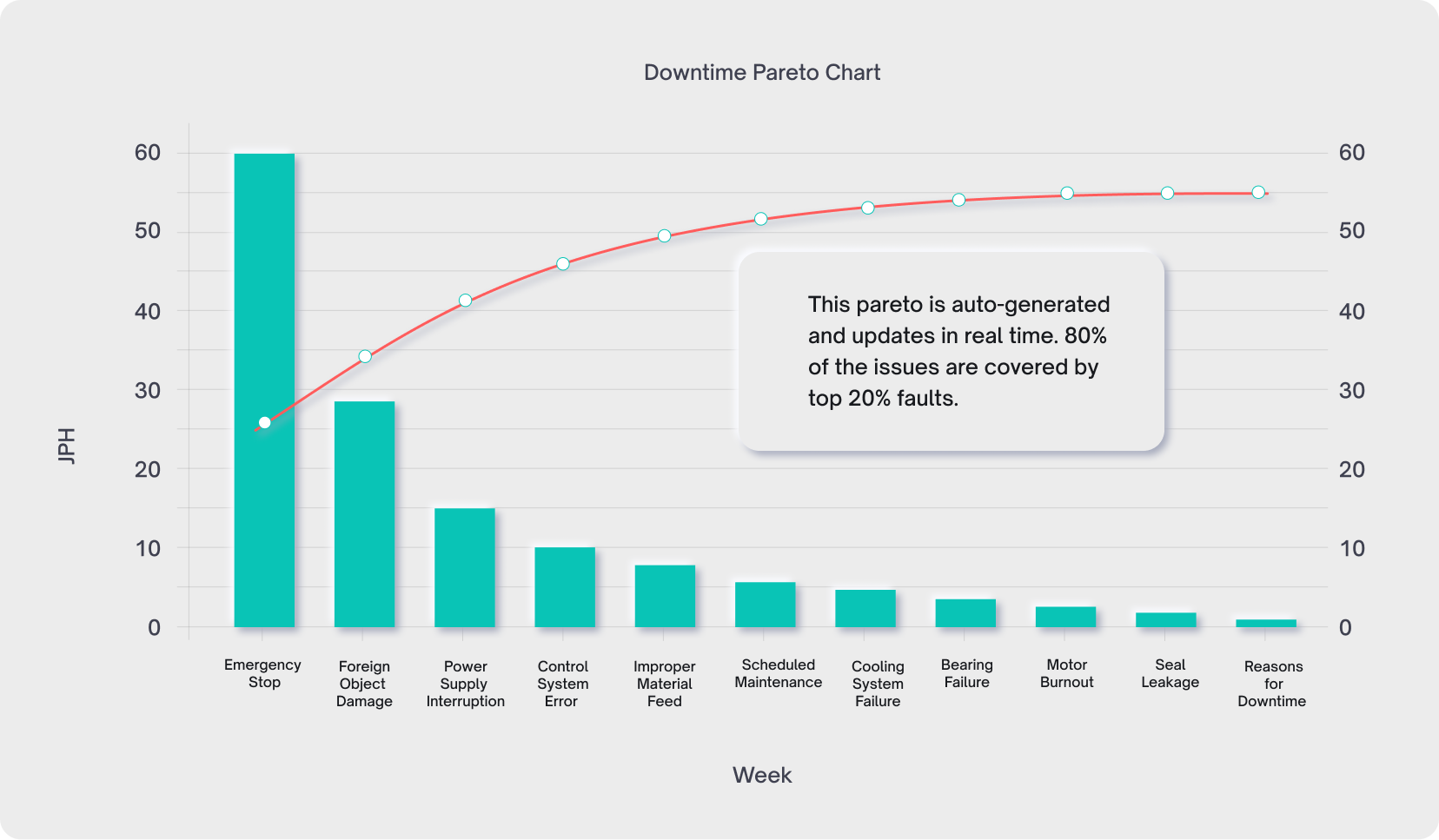

Figure 1: Linecraft Ikshana automated downtime Pareto breakdown. By categorizing native PLC fault registers, the maintenance team immediately identified the high-impact mechanical and sensor anomalies.

Key findings from the automated Pareto analysis included:

• The Bead Apex Centering Interlock: A specific pneumatic centering guide on the bead transfer mechanism accounted for 34% of all availability loss. Pneumatic seal degradation was causing intermittent optical sensor alignment failures, resulting in 40+ reset attempts per shift.
• Ply Gripper Servo Over-Torque Trips: High-speed servo drives on the ply servicer experienced micro-trips during tensioning due to minor material friction variations, requiring manual operator resets.
• Conveyor Handshake Latency: Unoptimized communication timeouts between the tread feed conveyor and the main building drum caused recurring 10-second pauses between cycles.

Engineering Interventions: Precision Reliability Action

With precise component-level accountability established, the plant engineering team executed a prioritized remediation sprint:

• Pneumatic Cylinder Upgrades & Sensor Realignment: Upgraded the bead centering cylinder seals and repositioned the optical verification bracket, reducing bead transfer faults by 92%.
• Servo Drive Torque Curve Tuning: Refined the motor acceleration profile in the PLC to gracefully accommodate material tension variances without tripping safety thresholds.
• PLC Handshake Optimization: Streamlined the inter-module conveyor handshake routine, eliminating 8 seconds of idle dwell time on every tyre build.

Quantified Business Results: +30% Uptime Surge

The impact of focusing engineering effort on the true Pareto drivers was immediate and sustained across subsequent quarters:

Key Takeaways for Manufacturing & Reliability Leaders

• Micro-Stops Cost More Than Catastrophic Failures: Massive breakdowns get attention, but chronic 30-second micro-stops are what drain millions in plant capacity.
• Eliminate Manual Operator Downtime Logging: Subjective manual logging distorts operational reality. Automated PLC telemetry provides clean, undeniable proof of equipment health.
• Prioritize by Total Lost Time, Not Just Frequency: High-frequency faults with trivial impact distract teams from lower-frequency issues that consume hours of machine runtime.
