Shaving 4 Seconds of Cycle Time on an Engine Assembly Line

How a leading commercial engine OEM leveraged Linecraft AI’s variant-stratified cycle analytics to uncover an unoptimized robotic tool trajectory—cutting 4 seconds off line cycle time and balancing twin parallel stations.

Customer Background & Assembly Architecture

Modern engine assembly plants prioritize flexible manufacturing, producing multiple engine displacements on the same conveyor network. To meet high takt targets, powertrain engineers often split heavy assembly tasks across identical parallel stations (such as Station A and Station B). Pallets carrying engine blocks are dynamically routed to whichever station becomes available first.

The customer—a major commercial vehicle and industrial diesel engine OEM—produced two core variants on their flagship assembly line: a 2.7-liter inline-4 engine and a 3.0-liter turbocharged variant. Both variants shared the same cylinder head pre-assembly and bolt-fastening stations.

The Operational Challenge: The Parallel Station Paradox

Plant supervisors observed a recurring bottleneck that disrupted shift targets: whenever production schedules called for high volumes of the 3.0-liter engine, line throughput dropped noticeably, while 2.7-liter batches ran smoothly.

• Twin Machines Running at Different Speeds: Station A and Station B were identical machines from the same tooling vendor. Yet Station B repeatedly lagged behind when processing the 3.0L engine.
• Misleading Assumptions: Engineers initially suspected that the 3.0L cylinder head had higher casting friction, causing slower pneumatic clamp seating, or that the fasteners required greater torque dwell time. However, torque monitoring confirmed that the actual bolt tightening duration was identical across both variants.
• Unnecessary Station Starvation: The 4-second delay on the 3.0L head was small, but in serial manufacturing with small buffers, 4 seconds on every second cycle caused downstream transfer lines to periodically starve.

"When two identical machines on the same line behave differently across product variants, you don't need a hardware rebuild—you need micro-second operational visibility."

How Linecraft AI Solved the Variant Discrepancy

The plant connected Linecraft Ikshana to the line's PLC network and RFID tracking system. Ikshana tracked every engine pallet's RFID transponder, automatically tagging each cycle dataset with the exact engine model, serial number, and target torque recipe.

Ikshana compared thousands of cycles across both variants and both physical machines simultaneously:

• Variant-Stratified Probability Distributions: Comparing the 2.7L engine cycle distribution against the 3.0L distribution at millisecond granularity.
• Sub-Step Micro-Timeline Analysis: Decomposing the overall cycle into clamp engage, tool travel, fastener search, rundown, torque audit, tool retract, and pallet release.

Data Discovery: Unmasking the 4-Second Tool Clearance Deficit

Linecraft’s comparative histogram provided immediate visual clarity on the discrepancy:

Figure 1: Linecraft Ikshana multi-variant cycle distribution. The 2.7-liter engine (grey curve) consistently achieved takt time, whereas the 3.0-liter engine (cyan curve) was shifted 4 seconds higher across the entire production distribution.

Linecraft’s micro-step breakdown isolated the exact mechanical cause:

• The Root Cause: It was neither clamp pressure nor torque duration. During commissioning, a robotics technician had programmed the automated tightening tool head to retract to an excessive "safe clearance" rest position between bolt groups specifically on the 3.0L variant to avoid an optical sensor bracket.
• The Unnecessary Motion: The tool arm was traveling 180mm further back than necessary on every bolt cycle, adding 4.2 seconds of empty air transit time per cylinder head.

Customer Success Interventions: Re-Aligning Tool Coordinates

Armed with Linecraft's step-level timestamp data, the customer’s robotics programmer and tooling technician required only a single 45-minute shift break to implement the permanent fix:

• Robotic Waypoint Trajectory Optimization: Repositioned the intermediate tool rest coordinates to maintain safe 25mm clearance while eliminating the unnecessary 180mm retraction loop.
• Proximity Sensor Bracket Adjustment: Adjusted the optical sensor bracket angle, allowing a direct linear tool travel path between bolt groups.
• PLC Recipe Harmonization: Verified that identical optimized motion profiles were mirrored across both Station A and Station B.

Quantified Customer ROI: 4 Seconds Recovered Per Engine

Following the trajectory adjustment, Linecraft’s real-time monitoring captured the immediate convergence of cycle times:

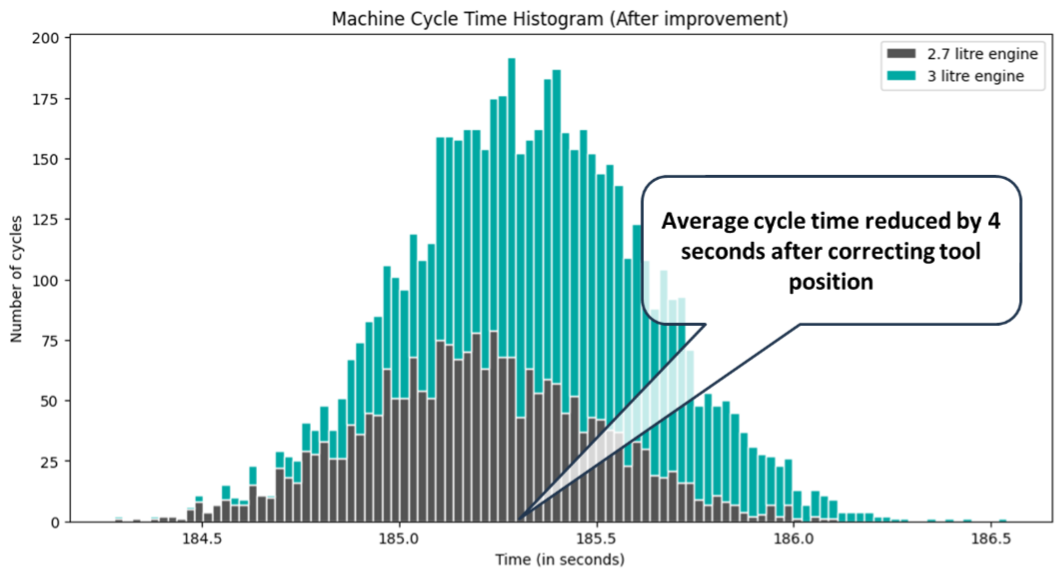

Figure 2: Linecraft Ikshana verification histogram. Following the tool trajectory correction, the 3.0-liter engine cycle distribution (cyan) shifted left by 4 seconds, perfectly matching the nominal 2.7-liter takt baseline.

Key Takeaways for Manufacturing & Industrial Engineers

• Stratify Data by Product Variant: Aggregated line cycle times mask model-specific inefficiencies. Always evaluate machine capability by recipe and variant.
• Look for 'Air Time' in Automation: Significant cycle time loss often happens when tools are moving between work steps, not while the tool is cutting, welding, or fastening.
• Continuous Verification Closes the Loop: Use automated histograms to verify that engineering changes deliver the expected statistical shift on the shop floor.
